Cooling and calibrating systems

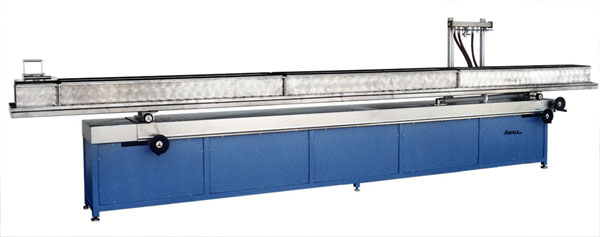

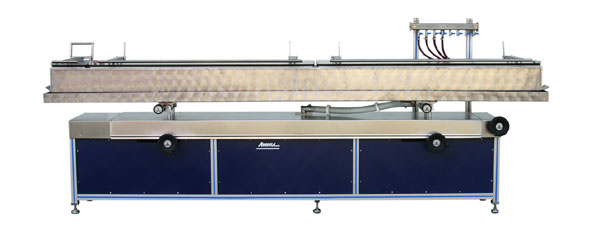

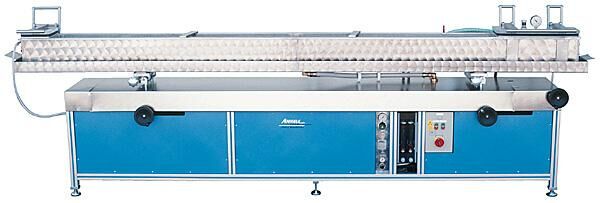

The Ankele cooling and spraying reservoirs with integrated belt haul off are suitable for cooling smooth or corrugated pipes up to a diameter of 100mm.

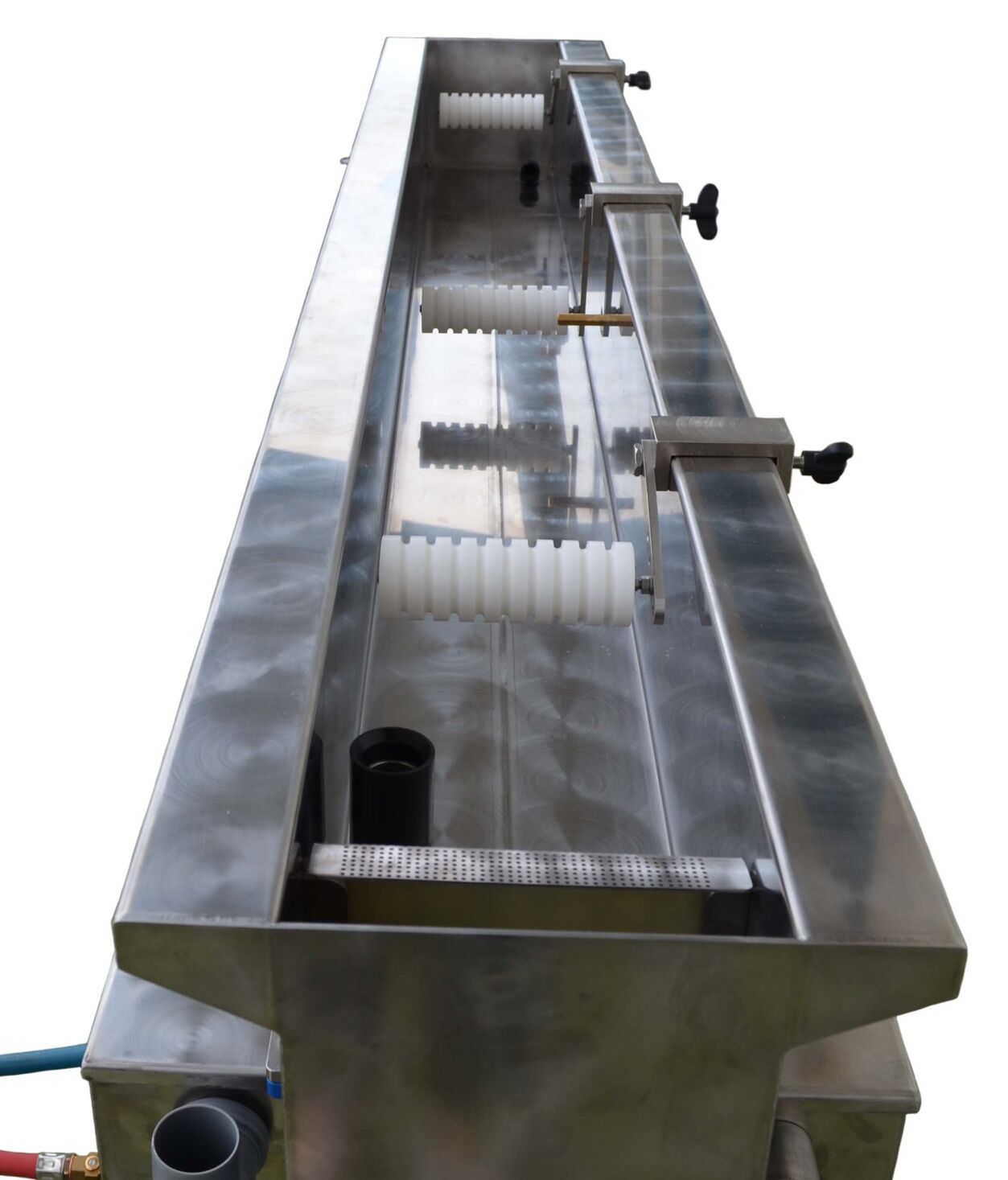

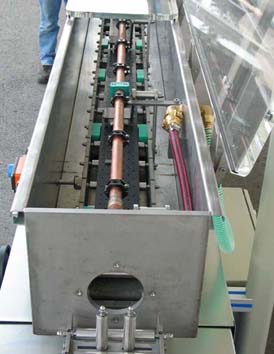

The tank is installed on a support with crosswise an high adjustable, the tank is closed with acrylic glass pane. The belt of the haul off is made in CR-natural rubber. The gearbox with the coupled motor is installed outside of the tank.

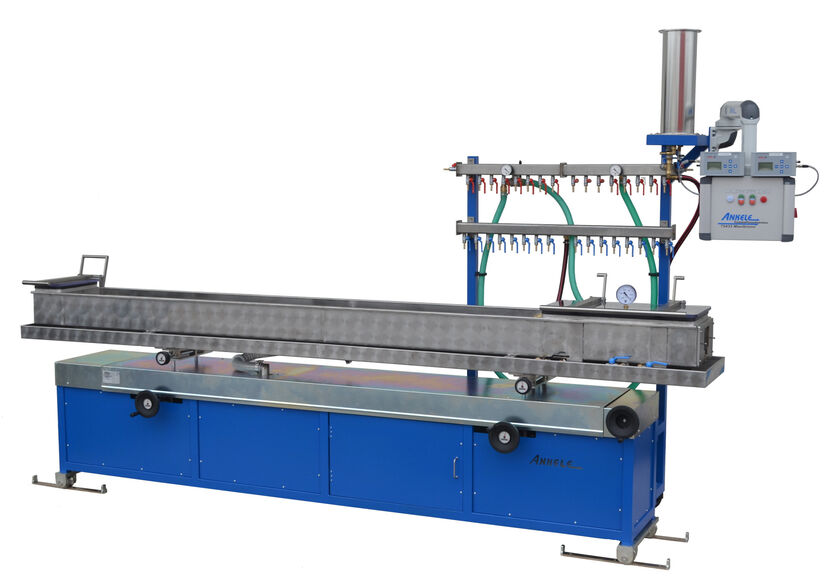

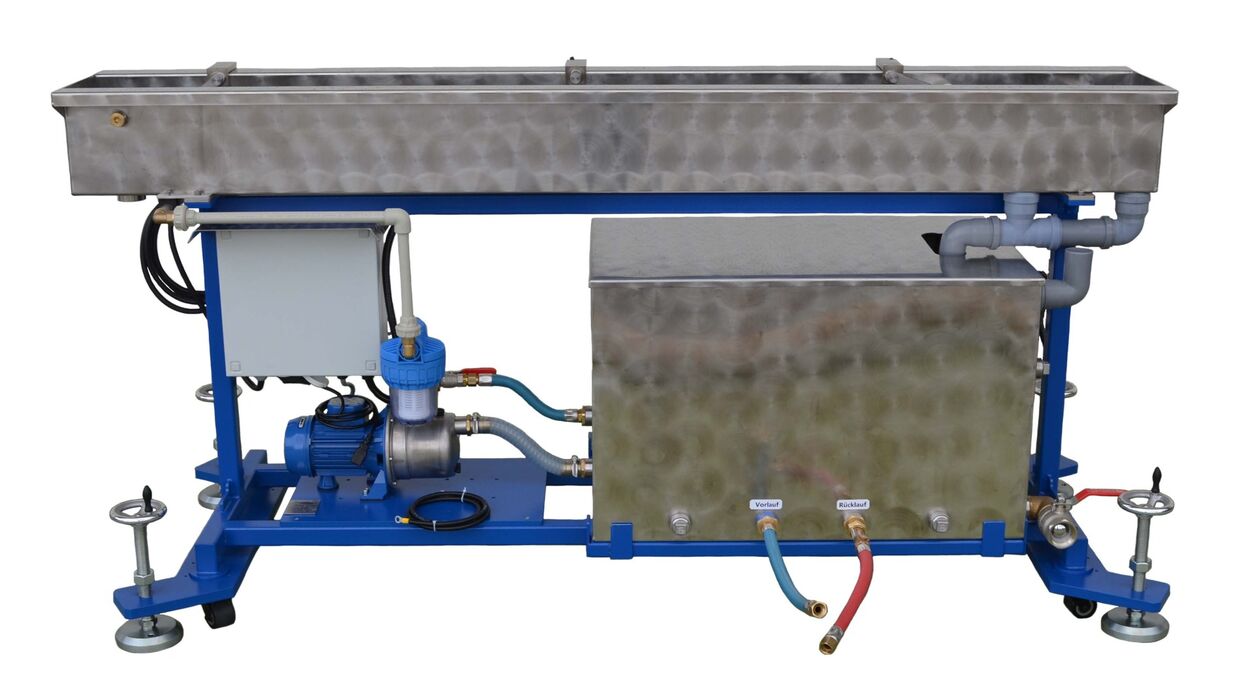

The spraying nozzles which are assembled over the belt can be dosed. The product is moving exactly through the tank because there are installed profile-guideance in and in front of the tank. The central water distribution can be subjected directly from customer water-cooling-system or from a separate in the support installed autark water system with pump.

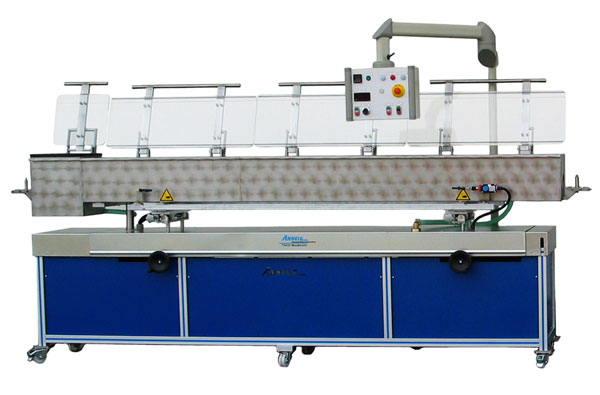

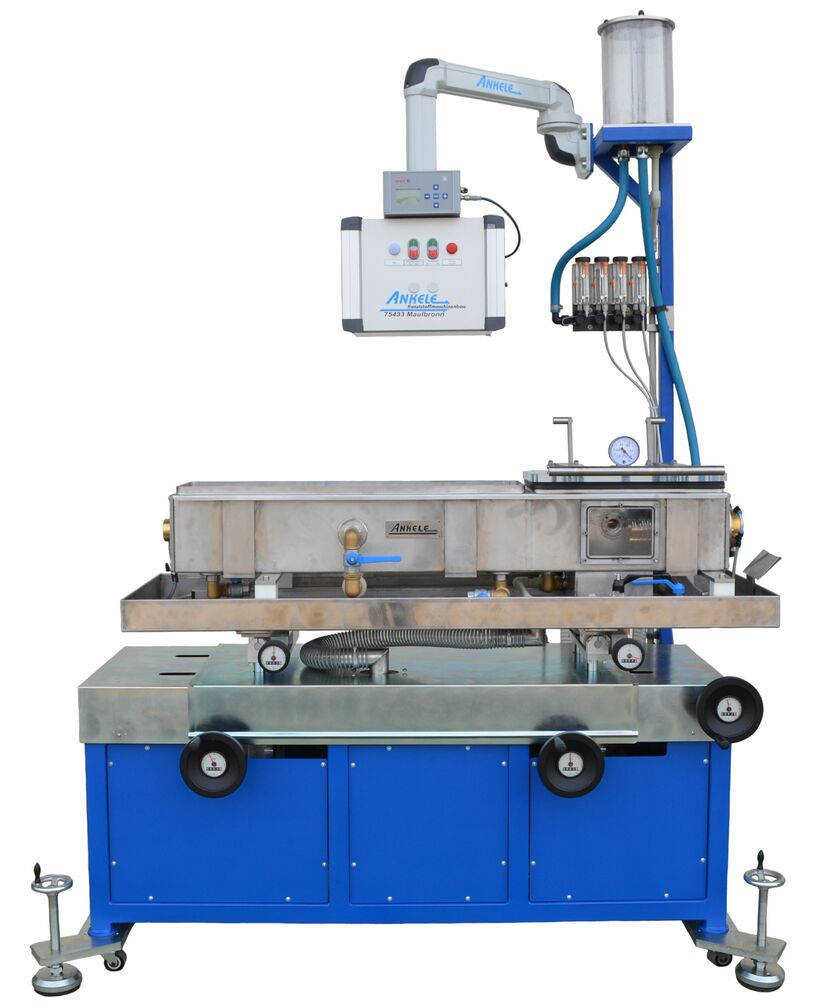

The control and regulation of the inserted haul off and pump will be done by a swivel arm with rotary operating cabinet.

Standard

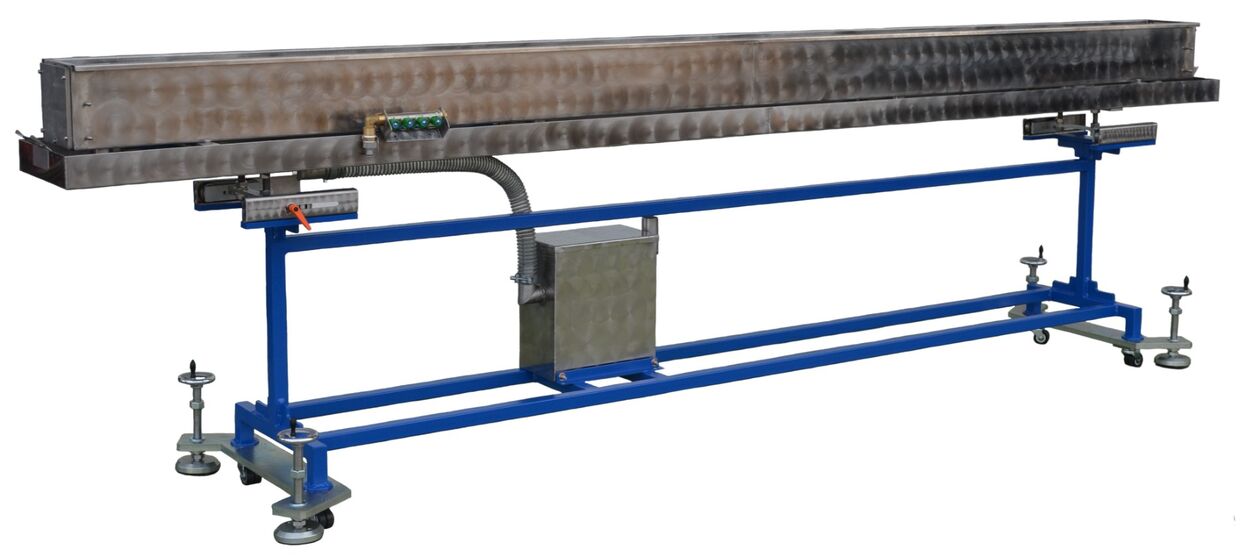

• height adjustable aluminium frame

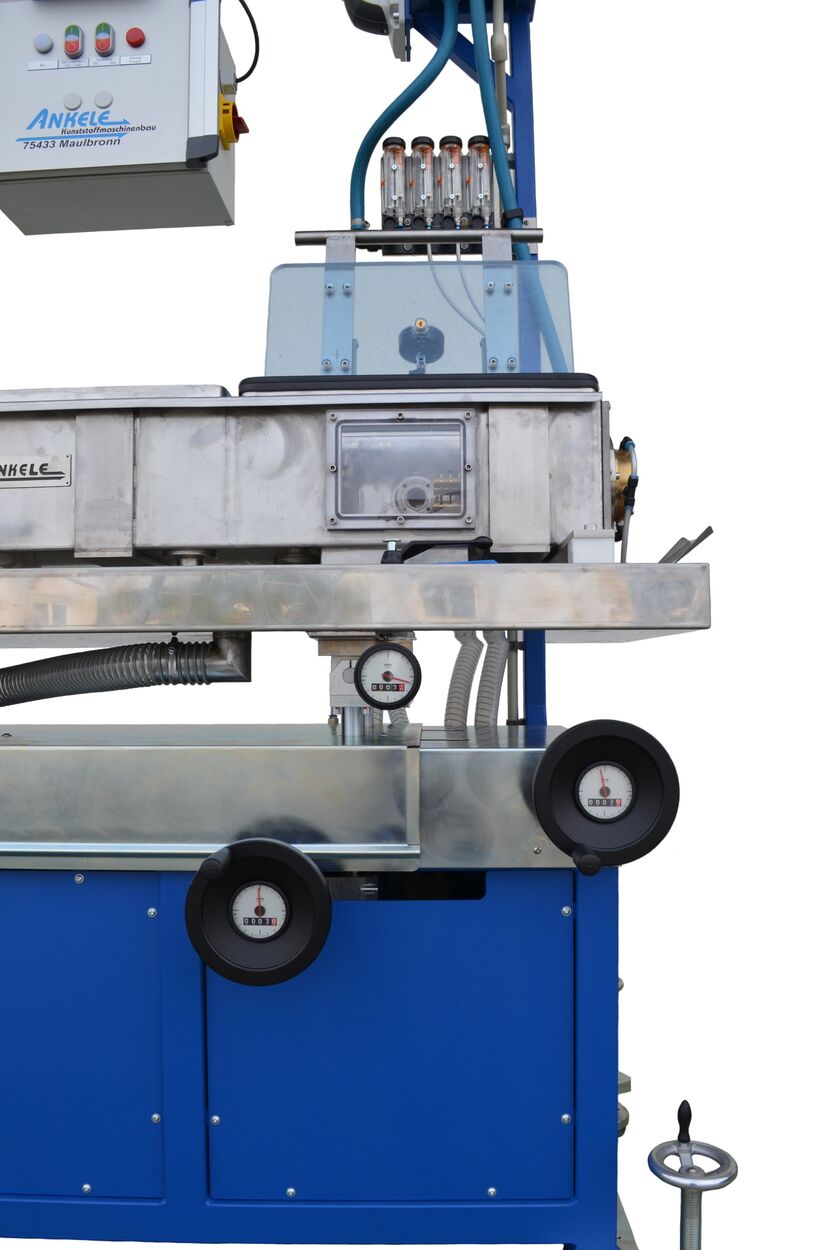

• mechanical height, transverse and length adjustment of bath via crank mechanism
• between 1 – 3 liquid ring vacuum pumps with AC-drive integrated into frame
• central vacuum distribution
• central water distribution
• central water drain with integrated inox holder to support the calibrating bath
• water/air deposit tank with central water discharge integrated into substructure
• all fittings, connections and equipment necessary for the operation of the calibrating reservoirs

Options

• custom-designed fixing attachments
• combined calibrating baths with tanks et cet. for application in sleeve or disc calibration
• containers for calibrating tools and suction equipment
• spraying equipment
• additional pressure pump for cooling water supply
• additional suction pump in cooling water return line (level control)
• blow off chambers and equipment
• profile position hold
• flow control valve
• vacuum control valves
• rotary control cabinet with swivel arm
• counters at the adjustment device
• additional motor-driven length adjustment via rails on the shop floor
• special execution for medical purposes

Standard

• height adjustable aluminium frame
• mechanical height, transverse and length adjustment of bath via crank mechanism
• between 1 - 3 liquid ring vacuum pumps with AC – drive integrated into frame, increasing suction capacity and liquid flow
• manually adjustable vacuum control valves for calibrating tanks

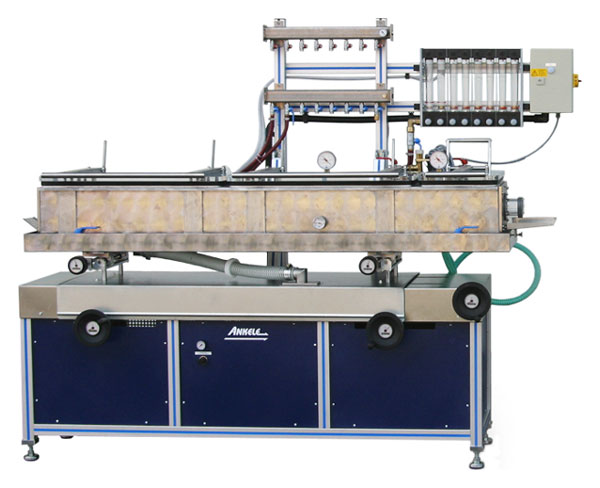

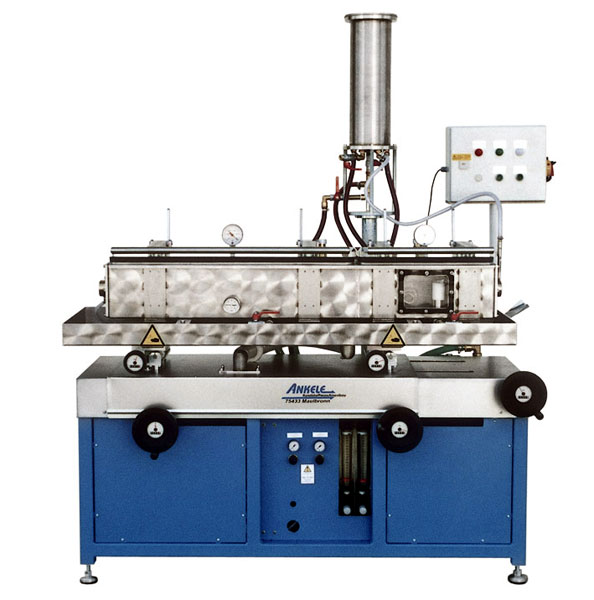

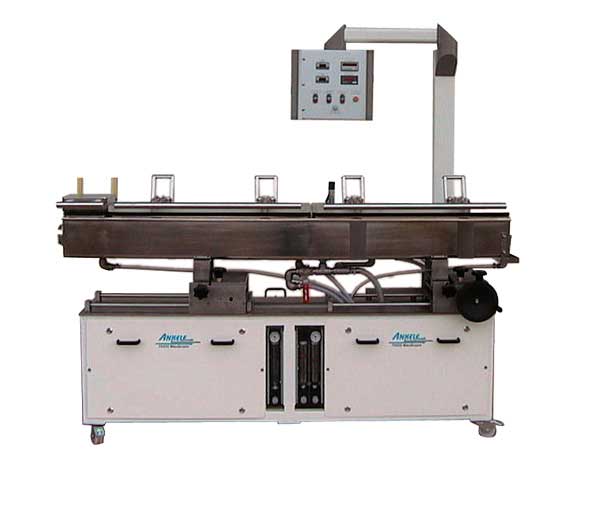

• a multi-chamber spray tank for both vacuum and spraying

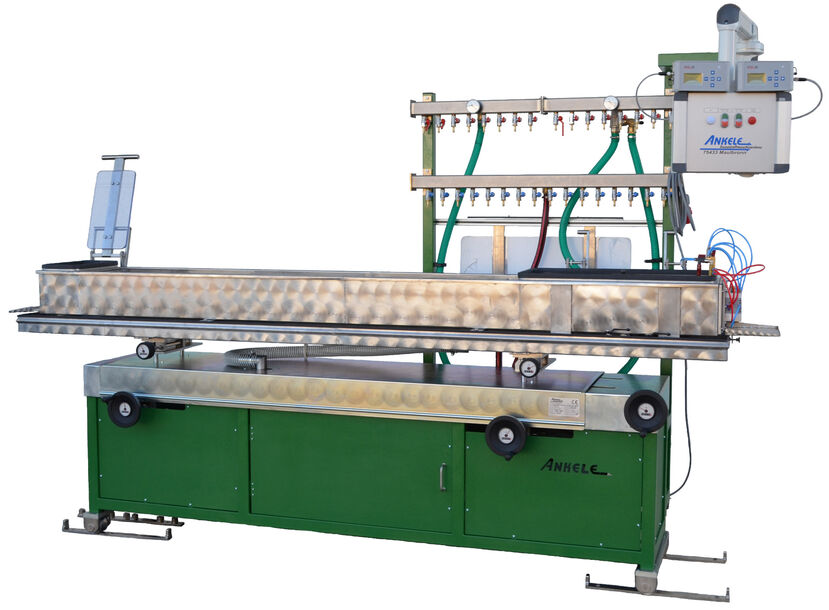

• spraying equipment with individual controls and conical precision spray nozzles
• additional pressure pump for spray nozzles
• water / air deposit tank with central water discharge integrated into substructure
• all fittings, connections and equipment necessary for an operation of the calibrating reservoirs

Options

• custom-designed fixing attachments
• custom-designed combined vacuum calibrating tanks
• special spraying equipment
• blow off chambers and equipment
• profile position hold
• flow control valve
• rotary control cabinet with swivel arm
• counters at the adjustment
• additional suction pump in cooling water return line (level control)
• additional motor-driven length adjustment via rails on the shop floor
• special execution for medical purposes
