Transverse saws and precision saws
High precision saws
| Precision saws | Standard | |||
|---|---|---|---|---|
| ALSä | 100/35-P | 100/50-P | 100/35 | 100/50 |
| profil cross-section, mm | 80/60 | 120/80 | 80/60 | 120/80 |
| pipe diameter, mm | 70 | 100 | 70 | 100 |
| saw blade diameter, mm | 350 | 500 | 350 | 500 |
| drive, kW | 2,2 | 3 | 2,2 | 3 |
| tolerance range, mm | +/- 0,2 | +/- 0,2 | +/- 1 | +/- 1 |
| drive saw table | servo | servo | pneum. | pneum. |

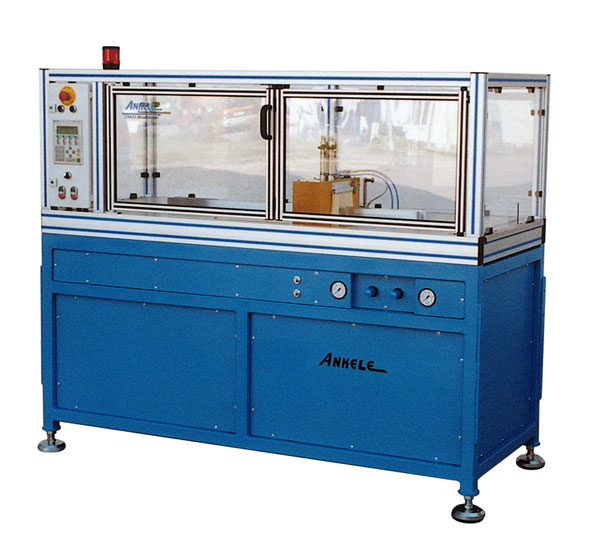

Ankele - precision saws

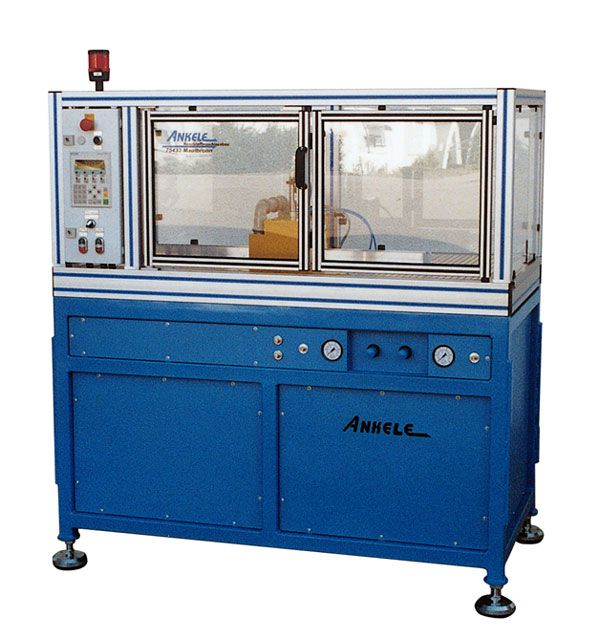

Ankele - precision saws
- Servo driven saw table
- Siemens SPS - control
- Operator panel with commisionrecipe management
- Sound absorbing, swing open hood
- Universal-profil-holder
- Adjustable profil-guide
- Aluminium saw traveller with linear guide
- Prepared for connect a extraction unit
- Optional geräuscharme Absauganlage
- Pneumatischer Sägetischantrieb
- Optional low noise extraction
- Pneumatically driven saw table
- Digital length selection
- SPS-control
The saw programme includes standard and precision saws with hood.
Transverse Saws
For plate thickness up to 100 mm. Cutting process in 1 to 4 steps, plate width 650 -1000 mm, equipped with a carbide hard face sawblade with special ginding.
| machine typ | APLSä 650-1000 | APLSä 1000-1000 |
| max. profil thickness | 0-100 mm | 0-100 mm |
| max. profil width | 650 mm | 1.000 mm |
| adjustable saw cut-off height | up to 4 steps | up to 4 steps |
Special saws can be designed and produced for individual applications. Please contact us for further information.
Ankele - transverse saw
